Understanding Single Core Cable: A Comprehensive Guide by Swadeshi Cables

In the world of electrical distribution and wiring, the single core cable occupies a special place. Whether in residential, industrial, or utility-scale installations, engineers and electricians rely on single core cables for certain tasks where their characteristics outperform alternatives. In this blog, we will deep dive into what a single core cable is, its design, advantages and limitations, installation practices, applications, and why Swadeshi Cables.com is a brand you might trust when procuring them.

What Is a Single Core Cable?

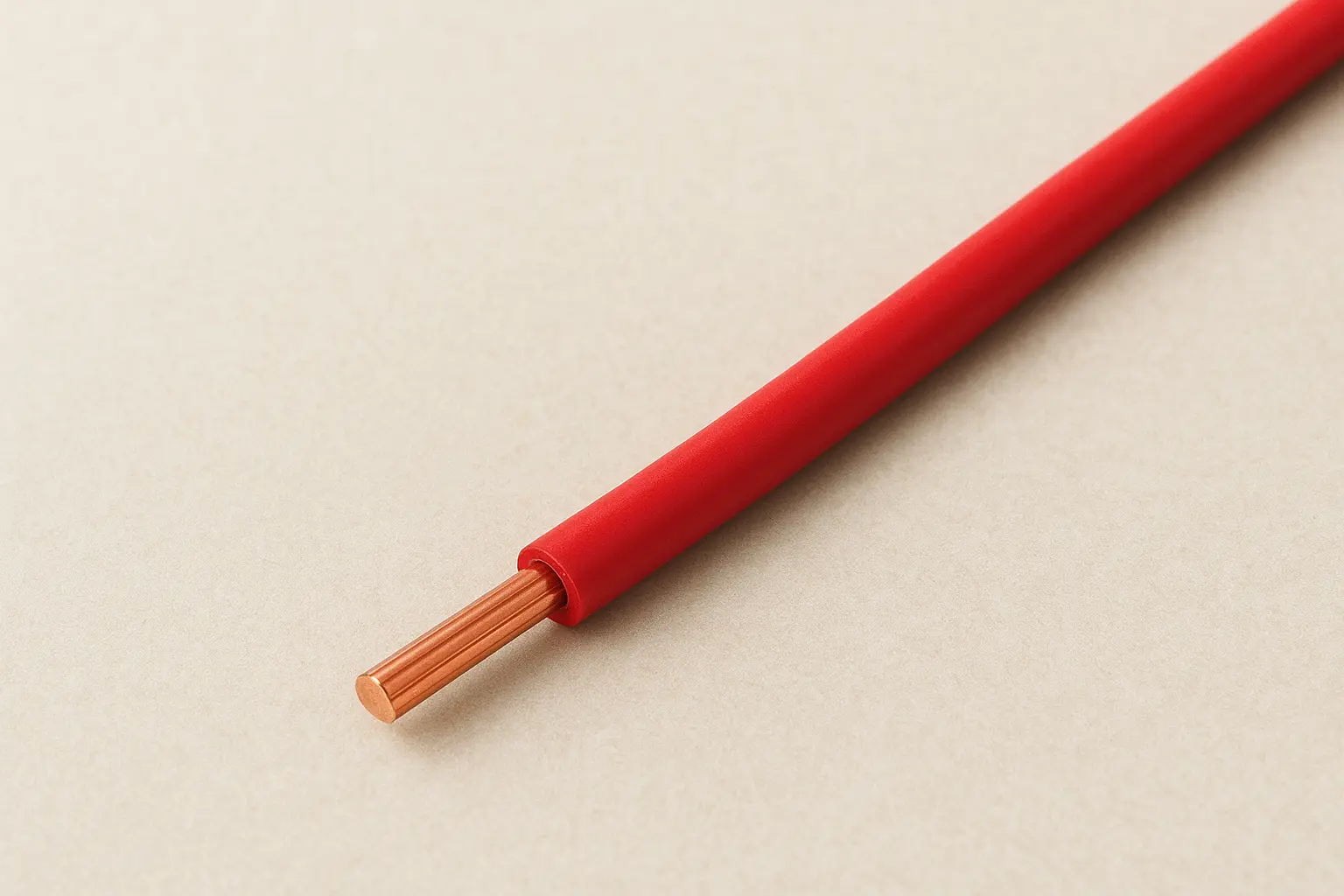

At its simplest, a single core cable is a cable with exactly one conductor (or “core”) enclosed within insulation and possibly additional protective layers. In contrast, multicore cables bundle two or more insulated conductors within a single outer sheath.

The conductor is typically copper or aluminum, and the insulation might be PVC, XLPE, or other polymers depending on voltage, environment, and regulatory specifications

Single core cables are widely used in power transmission, distribution, and heavy-duty applications, especially where high electrical currents or high voltages are involved.

Swadeshi Cables, for instance, offers single core cable options in sizes from 16 sq mm to 1,000 sq mm in their product line. (Swadeshi Cables) Their product portfolio also includes multicore cable ranges (4 sq mm to 400 sq mm) for complementary applications.

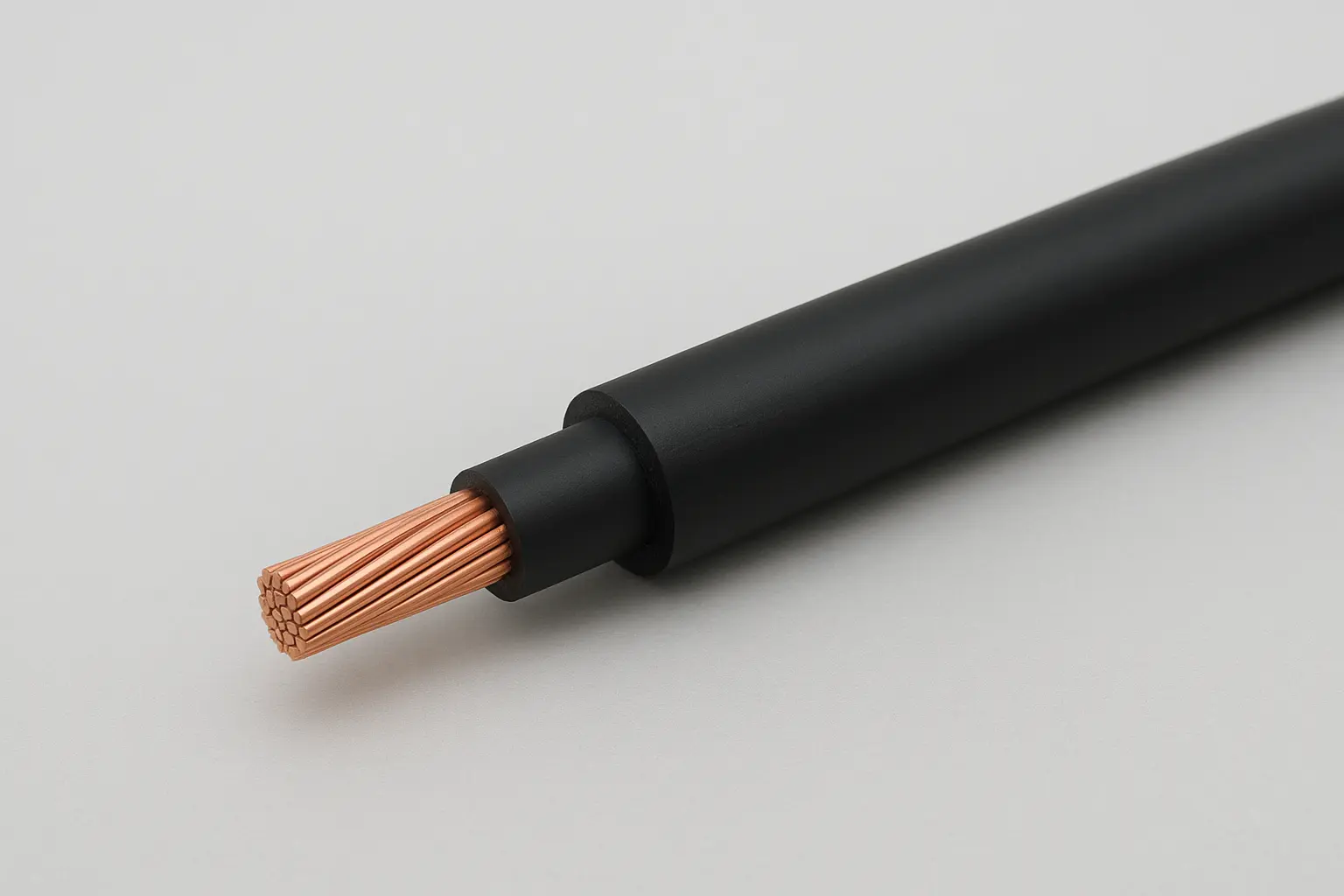

Key Components & Construction

Let’s break down a typical construction of a modern single core cable:

• • Conductor : The central core, usually made of copper or aluminum, either in solid, stranded, or circular (class 2) form. (Swadeshi Cables) Stranded conductors improve flexibility, whereas solid ones tend to be stiffer but simpler in manufacturing.
• • Insulation Layer : Around the conductor sits an insulating material to prevent current leakage. Common insulation types include PVC, XLPE, and in some cases flame-retardant or halogen-free variants.
• • Inner Sheath / Metallic Shield : For higher-voltage cables, a metallic sheath or shield (e.g. copper tape, lead sheath, or aluminum) may be included to manage electrostatic fields and provide a path for fault currents or shielding.
• • Armouring : If mechanical protection is required (e.g. in underground or harsh installations), an armouring layer is added. For single core cables, non-magnetic armour (like aluminum wire armour, AWA) is preferred because magnetic armour (steel) would suffer from induced eddy currents due to the circular magnetic field around the cable.
• • Outer Sheath / Jacket : The outermost protective layer protects against moisture, mechanical damage, UV, chemicals, etc.

Swadeshi’s data shows that they manufacture single core cables with options for PVC, XLPE, FLESH PVC, and FLESH XLPE insulation, and armor in galvanised steel or aluminium forms.

Advantages of Single Core Cable

Why choose a single core cable over multicore in certain scenarios? Here are key advantages:

• • Better Electrical Performance & Heat Dissipation : Because the conductor is isolated, single core cables offer better heat dispersion and lower thermal coupling between conductors. This often allows higher current-carrying capacity compared to multiple cores bundled in a sheath.
• • Flexibility in Installation Layout : Single core cables can be laid in different formations (flat, trefoil, etc.), giving designers flexibility to manage magnetic fields, spacing, and grounding more effectively. For instance, trefoil formation is often used to balance magnetic fields around three-phase power cables.
• • High Voltage Suitability : Single core cables are especially favorable for medium to high voltage applications, where insulation, shielding, and separation between phases are critical. Many installations over 35 kV tend to favor single core designs.
• • Lower Crosstalk & Electromagnetic Interference (EMI) : Since there is just one conductor per insulation, internal interference and crosstalk issues (common in multicore cables) are negligible.
• • Longevity & Stability : Single core cables are less prone to internal insulation stress and deterioration from conductor interactions. They are also simpler in structure, which often leads to fewer failure points.

Challenges & Limitations of Single Core Cable

No technology is perfect. Below are important limitations and how to mitigate them:

• • Mechanical Rigidity & Flexibility Issues : Single core cables tend to be stiffer and less flexible than multicore variants, especially in large cross-sections. Bending becomes harder, making them less ideal for installations with tight curves.
• • Induced Voltages & Sheath Currents : When a single core cable carries alternating current, it generates a changing magnetic field outside itself. If there is a metallic sheath, voltage induction can occur in that sheath (Faraday’s law). In short runs or improper bonding, this may result in high voltages or circulating currents in the sheath. To handle this, techniques like cross-bonding or proper sheath earthing are used.
• • Space & Routing Constraints : Installing multiple single core cables individually often requires more space and routing channels compared to a bundled multicore cable.
• • Higher Cost for Small Circuits : For small or low-current circuits, multicore cables (with multiple insulated conductors) can be more economical. In other words, the benefits of single core shine more in heavy-duty or high current applications.
• • Complexity in Design & Balancing : When multiple single core cables are used in three-phase systems, current imbalance may result from physical layout differences between cables (even though the load is balanced), leading to sharing issues.

Installation Best Practices & Requirements

Getting optimal performance (and safety) from single core cables requires proper installation protocols. Some key considerations:

1. Formation / Layout (Flat, Trefoil, etc.)

• • Trefoil formation is preferred in many three-phase power cable installations because it ensures the phases are symmetric and helps balance magnetic flux and induced currents.
• • Flat formation is simpler to install in some cases, but may lead to higher losses or temperature rise in the middle core.
• • Phase transposition might sometimes be required to counteract the imbalance effects.

2. Bending Radius & Handling

Maintain minimum bending radius guidelines (often a multiple of the cable diameter: e.g. 12× or more) to prevent mechanical stress on insulation. Avoid twisting, kinking, or sharp bends during laying.

3. Earthing / Sheath Bonding

Proper earthing of metallic sheaths, grounding points, or using cross-bonding arrangements are essential to control induced voltages in sheaths.Use proper terminations and ensure continuity between cable sections.

4. Cable Spacing & Clearances

Maintain sufficient spacing between single core cables to allow heat dissipation and reduce magnetic coupling effects. Use supports and saddles at appropriate intervals

5. Protection & Routing

When routing underground or through structures, provide mechanical protection (conduits, ducts, trays). Ensure cables are shielded from moisture, chemicals, and mechanical damage.

6. Temperature & Environment Considerations

Select insulation types suitable for environmental conditions (e.g. heat, humidity, chemical exposure). Respect derating factors for ambient temperature, grouping, deep burial, etc

7. Testing & Quality Assurance

After installation, carry out insulation resistance tests, continuity checks, and earth leakage tests to ensure everything is safe and compliant.

Applications of Single Core Cable

Single core cables find widespread use in domains requiring robust and reliable power delivery. Some key applications:

• • Distribution networks (medium-voltage feeders)
• • Power substations
• • Transformer connections
• • Industrial plants with large loads, motors, and heavy machinery
• • Switchgear and bus duct systems
• • Utility transmission systems, especially where higher voltages are involved
• • Large electrical infrastructure projects (factories, plants, power utilities)

Because Swadeshi Cables offers single core ranges up to 1,000 sq mm and voltage rating of up to 1.1 kV in their power cable lines, their offerings are well suited for many industrial and commercial power applications.

Also, smaller flexible single core cables (e.g. 1.5 sq mm FR PVC) are available from Swadeshi for internal wiring installations.

Why Choose Swadeshi Cables for Single Core Cable Needs?

If you are considering swadeshi cables as your supplier, here are some value points you can highlight:

• • Wide Size Range : They offer single core cables from 16 sq mm up to 1,000 sq mm, which covers many industrial and power applications.
• • Industry Standards & Certifications : Their products adhere to IS standards such as IS:1554-I, IS:7098-I, and meet international norms like IEC/BS standards.
• • Material & Insulation Options : They provide copper or aluminum conductors, PVC or XLPE insulation, and armored as well as unarmored constructions to suit diverse installations.
• • Strong Local Presence : Based in Delhi (industrial complex Narela), they are well-positioned for service and supply in North India.
• • Product Variety (Flexible, Rigid, FR, etc.) : They also manufacture flexible single core cables (e.g. FR PVC insulated) in smaller sizes (e.g. 1.5 sq mm) for various wiring needs.
• • Reputation & Legacy : As a known brand in India with product documentation and product listings, Swadeshi supports reliability and trust in B2B procurement.

When writing content or marketing surrounding them, you can emphasize these strengths in relation to single core cable performance, standards, and service.

Tips for Buyers & Specifiers

If you're on the procurement or design side, here are practical tips when ordering or specifying single core cables (particularly from Swadeshi or similar vendors):

• • Always specify cross-sectional area, voltage rating, insulation type, and whether armoring is needed.
• • Ask for test reports: insulation resistance, voltage withstand, etc.
• • Confirm delivery commitments and any site support for larger cable deliveries (logistics for 1,000 sq mm drums can be nontrivial).
• • Check whether conductors are stranded or solid — stranded is preferred for flexibility in some installations.
• • Confirm the minimum bending radius, and ensure your layout can meet it without undue stress.
• • Insist on proper bonding/earthing practices, especially for metallic sheath or shielded variants.

A Sample Use Case: 240 sq mm Single Core Cable by Swadeshi

To make things more concrete, consider Swadeshi’s 240 sq mm single core flexible cable, with IS:694 / 1100 V rating. Such a cable would be suited for heavy power draws, such as in industrial motor feeders or distribution paths in factories.

When deployed, the installation engineer would need to ensure adequate spacing, proper supports, meet bending radius constraints, and provide safe terminations and earthing. In a three-phase system, three such cables (one per phase) might be laid in trefoil formation for balance.

Conclusion

The single core cable remains a backbone component in power distribution and industrial electrical systems. Its design simplicity, robustness, favorable heat management, and electrical performance make it a go-to choice for heavy-duty installations. While there are challenges in handling, induced voltages, and layout, careful design and installation practices can mitigate them.

For organizations and specifiers in India, swadeshi cables presents a credible option for procuring single core cables, with an extensive size and insulation range, compliance to relevant standards, and local presence.
